SHEAR STUD WELDING MACHINE

Drawn Arc Shear Stud Welding Machines

These machines are designed for use with big-diameter studs (usually around 12mm to upto 32mm)

Drawn arc welding machines, also known as stud welding machines, are versatile tools used in various industries for creating strong and reliable weld joints. This welding process involves the fusion of a metal stud or fastener to a base metal, typically steel, by means of an electrical arc.

The drawn arc welding machine operates by generating a high-intensity electrical current that creates an arc between the stud and the workpiece. The arc produces enough heat to melt the end of the stud and a portion of the base metal. Once the arc is extinguished, pressure is applied to forge the molten metal together, forming a solid and durable weld

APPLICATIONS & ADVANTAGES

UNLIMITED POSSIBILITIES

These Shear Stud Welders can weld on thick plates, making them a great choice for PEB projects. They are also used in Steel Structures, Ship Building, Automobile Manufacturing and Infrastructure Projects.
There are limitless possibilities of application when you have a STUDMASTER® Shear Stud Welding Machine.

EMPOWERING CONSTRUCTIONS

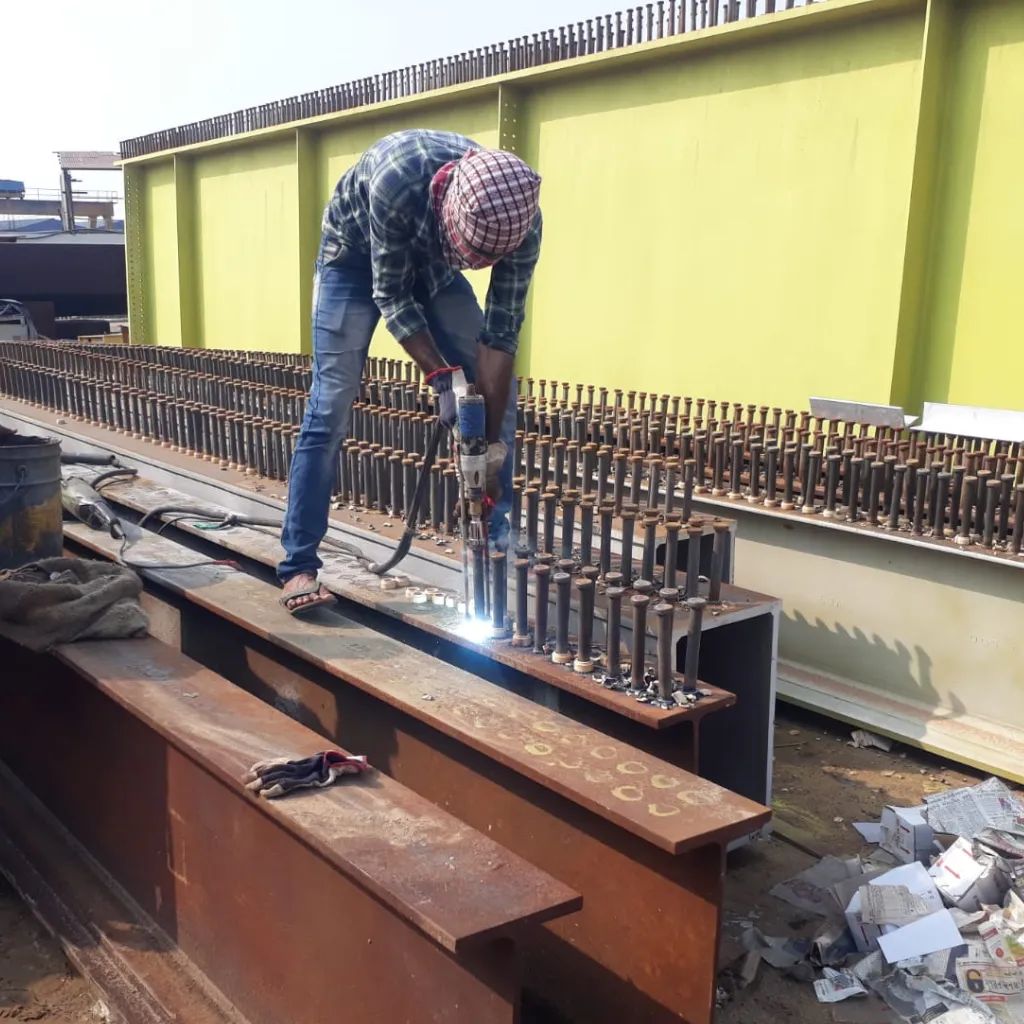

STUDMASTER® Shear Stud Welders can easily weld on Deck Sheets for creating Roofing Structures. They are ideally used on construction sites for connecting Shear Studs. They are instrumental in connecting shear connectors to steel-concrete composite structures, allowing for effective transfer of shear forces. Easily weld with Stud Welding Machine Manufactured in INDIA.

PERFECT FOR PRODUCTION

These Stud Welding Machines are made to take production load. STUDMASTER® Shear Stud Welding Units live up to expectation and perform unstoppably. The choice of 5 Models gives you flexibility to choose according to your production needs & Application Range. So now you can buy from a Stud Welding Machine Manufacturer near you.

HUGE RANGE OF APPLICATION

STUDMASTER® machines excel in producing strong and durable welds that withstand heavy loads and extreme conditions. Hence, they’re are a popular choice in construction for welding studs to steel structures. The solid fusion between the stud and base material creates a robust connection with high shear strength, ensuring structural integrity and longevity. This makes our machines essential tool in critical applications where safety and performance are paramount.

UNLIMITED POSSIBILITIES

These Shear Stud Welders can weld on thick plates, making them a great choice for PEB projects. They are also used in Steel Structures, Ship Building, Automobile Manufacturing and Infrastructure Projects. There are limitless possibilities of application when you have a STUDMASTER® Shear Stud Welding Machine.

EMPOWERING CONSTRUCTIONS

STUDMASTER® Shear Stud Welders can easily weld on Deck Sheets for creating Roofing Structures. They are ideally used on construction sites for connecting Shear Studs. They are instrumental in connecting shear connectors to steel-concrete composite structures, allowing for effective transfer of shear forces. Easily weld with Stud Welding Machine Manufactured in INDIA.

PERFECT FOR PRODUCTION

These Stud Welding Machines are made to take production load. STUDMASTER® Shear Stud Welding Units live up to expectation and perform unstoppably. The choice of 5 Models gives you flexibility to choose according to your production needs & Application Range. So now you can buy from a Stud Welding Machine Manufacturer near you.

HUGE RANGE OF APPLICATION

STUDMASTER® machines excel in producing strong and durable welds that withstand heavy loads and extreme conditions. Hence, they're are a popular choice in construction for welding studs to steel structures.
The solid fusion between the stud and base material creates a robust connection with high shear strength, ensuring structural integrity and longevity. This makes our machines essential tool in critical applications where safety and performance are paramount.

SHEAR CONNECTOR 1024x1024
2
3
25
24
23
22
SHEAR CONNECTORS
20
19
18
17
16
15
14
13
12
10
9
8
7
6
5
4

These machines are commonly used in construction, shipbuilding, automotive manufacturing, and other heavy-duty applications. They offer several advantages, including high welding speeds, excellent weld quality, and the ability to weld a wide range of stud sizes and materials. Drawn arc welding machines can create welds with high shear strength, making them ideal for structural connections and load-bearing applications.

The versatility of drawn arc welding machines extends to their ability to work with various types of studs, such as threaded studs, non-threaded studs, shear connectors, and pins. They can also weld studs to different base materials, including steel, stainless steel, aluminum, and brass.



In addition to their speed and versatility, drawn arc welding machines are known for their reliability and ease of use. They typically feature user-friendly controls, adjustable welding parameters, and safety mechanisms to ensure operator protection.

These Drawn arc welding machines are known for their user-friendly operation. They feature intuitive controls and adjustable welding parameters, allowing operators to customize the welding process according to specific requirements. Safety mechanisms are also integrated, ensuring the protection of the operator and preventing accidents during welding operations.

STUDMASTER® SMDA 12
STUDMASTER® SMDA 12
STUDMASTER® SMDA 1600HD
STUDMASTER® SMDA 1600HD
STUDMASTER® SMDA 2000HD
STUDMASTER® SMDA 2000HD
STUDMASTER® SMDA 2500HD
STUDMASTER® SMDA 2500HD
STUDMASTER® SMDA 3200HD
STUDMASTER® SMDA 3200HD

STUDMASTER® DRAWN ARC WELDING MACHINES

STUDMASTER® SMDA series are professional machines for Shear Stud Welding & Drawn Arc Stud Welding

  • Specially Designed for Welding Shear Connectors & Drawn Arc Studs
  • Different models starting from 12mm upto 32mm
  • Welds Studs directly on the job in seconds
  • No drilling, no riveting
  • No additional filler material required
  • High duty cycle
  • Excellent results
  • Proudly MADE IN INDIA🇮🇳
STUDMASTER® SMDA 12
STUDMASTER® SMDA 12
STUDMASTER® SMDA 1600HD
STUDMASTER® SMDA 1600HD
STUDMASTER® SMDA 2000HD
STUDMASTER® SMDA 2000HD
STUDMASTER® SMDA 2500HD
STUDMASTER® SMDA 2500HD
STUDMASTER® SMDA 3200HD
STUDMASTER® SMDA 3200HD

STUDMASTER® DRAWN ARC WELDING MACHINES

STUDMASTER® SMDA series are professional machines for Shear Stud Welding & Drawn Arc Stud Welding

  • Specially Designed for Welding Shear Connectors & Drawn Arc Studs
  • Different models starting from 12mm upto 32mm
  • Welds Studs directly on the job in seconds
  • No drilling, no riveting
  • No additional filler material required
  • High duty cycle
  • Excellent results
  • Proudly MADE IN INDIA🇮🇳



OUR ENTIRE RANGE OF DRAWN ARC WELDERS

If you’re looking for Shear Stud Welding Machine which welds Shear Studs with high strength, then this is the machine most suitable for the job. Also known as Drawn Arc Stud Welding, this machine will help you attain durable and strong welding results. Best results achieved with STUDMASTER® Shear Stud Welding Machines. Here is the Entire Range of Shear Stud Welders:

STUDMASTER® SMDA 12

FOR 3-12MM STUDS

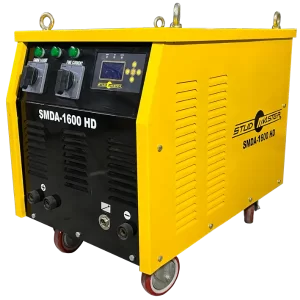

STUDMASTER® SMDA 1600HD

FOR 3-16MM STUDS

STUDMASTER® SMDA 200HD

FOR UPTO 19MM STUDS

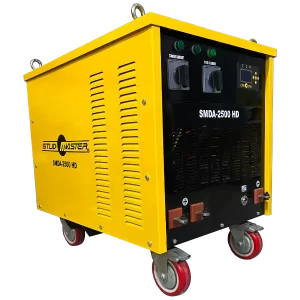

STUDMASTER® SMDA 2500HD

FOR UPTO 25MM STUDS

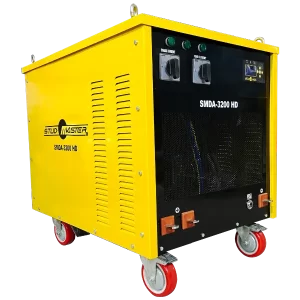

STUDMASTER® SMDA 3200HD

FOR UPTO 32MM STUDS

STUDMASTER® SMDA 12

(FOR 3-12MM STUDS)

STUDMASTER® SMDA 1600HD

(FOR 3-16MM STUDS)

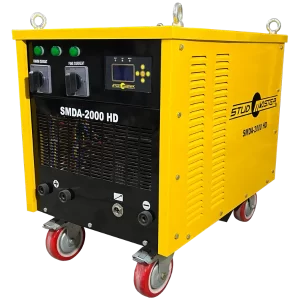

STUDMASTER® SMDA 2000HD

(FOR 3-19MM STUDS)

STUDMASTER® SMDA 2500 HD

(FOR 3-25MM STUDS)

STUDMASTER® SMDA 3200 HD

(FOR 3-32MM STUDS)

TECHNICAL DETAILS

MODEL NAMESMDA 12SMDA 1600 HDSMDA 2000 HDSMDA 2500 HDSMDA 3200 HD
STUD RANGE3-12mmUPTO 16mmUPTO 19mmUPTO 25mmUPTO 32mm
POWER SUPPLY415VAC±10%, 3 Phase415VAC±10%, 3 Phase415VAC±10%, 3 Phase415VAC±10%, 3 Phase415VAC±10%, 3 Phase
Max Weld Current1000 Amps1600 Amps2000 Amps2500 Amps3200 Amps
ORIGINMADE IN INDIA🇮🇳MADE IN INDIA🇮🇳MADE IN INDIA🇮🇳MADE IN INDIA🇮🇳MADE IN INDIA🇮🇳

STUDMASTER® SMDA 12

FOR 3-12MM STUDS

STUDMASTER® SMDA 1600HD

FOR 3-16MM STUDS

STUDMASTER® SMDA 200HD

FOR UPTO 19MM STUDS

STUDMASTER® SMDA 2500HD

FOR UPTO 25MM STUDS

STUDMASTER® SMDA 3200HD

FOR UPTO 32MM STUDS

TECHNICAL DETAILS

MODEL NAMESMDA 12SMDA 1600 HDSMDA 2000 HDSMDA 2500 HDSMDA 3200 HD
STUD RANGE3-12mmUPTO 16mmUPTO 19mmUPTO 25mmUPTO 32mm
POWER SUPPLY415VAC±10%, 3 Phase415VAC±10%, 3 Phase415VAC±10%, 3 Phase415VAC±10%, 3 Phase415VAC±10%, 3 Phase
Max Weld Current1000 Amps1600 Amps2000 Amps2500 Amps3200 Amps
ORIGINMADE IN INDIA🇮🇳MADE IN INDIA🇮🇳MADE IN INDIA🇮🇳MADE IN INDIA🇮🇳MADE IN INDIA🇮🇳
